MIDAS: the Motif Interactive Data Analysis System

• MIDAS includes all four components of an integrated analysis environment in a single package
  • top left: main command window
  • top right: event display window (up to 16 display windows)
  • bottom left: data browser
  • bottom right: histogram browser (up to 16 historgram windows)

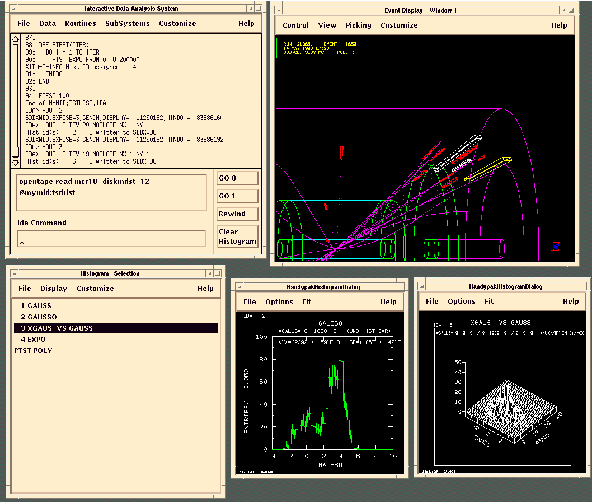

• a closer look at the histogram browser

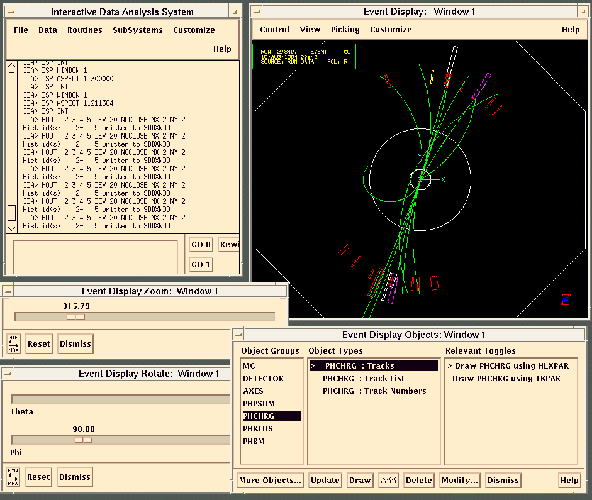

• a closer look at the event dislay system

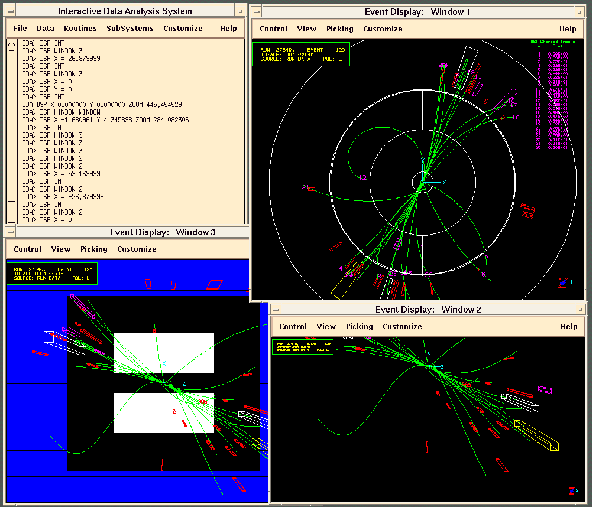

• multiple event display views of the same event

For more information on MIDAS, including more screen captures, see the MIDAS chapter of the Workbook for SLD Offline Users.
